Products

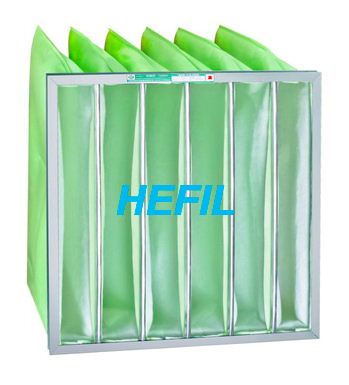

    HBP Non-woven Pocket Filter

    ===Features===

    ◆Filtration efficiency rating G3~F6 is available for selection
    ◆Using polyester fibers, in accordance with different diameter and
    density of them, make into a conformation of the increase in density
    by non-woven process, it has a property of high permeability, low
    initial resistance and high dust collection rate
    ◆The filter can be with the frame made up of aluminum alloy,
    galvanized steel, stainless steel or plastic


    ===Application===
    ◆Suitable as pre-filter used to protect high-performance filters, and
    filtration of fresh air in clean room ventilation system.

    ===Common specifications===



Model

Dimensions

No. of Pockets

Media Area (m2)

Initial Pressure Drop (Pa) @ Air Flow (m3/h)

W×H×D (mm)

G3

G4

F6

HBP-24×24×14-6P

592×592×381

6

3.3

25@2500 40@3600

35@2500 60@3600

80@2500

HBP-20×24×14-5P

490×592×381

5

2.7

25@2100 40@3000

35@2100 60@3000

80@2000

HBP-12×24×14-3P

287×592×381

3

1.6

25@1250 40@1800

35@1250 60@1800

80@1250

HBP-24×24×22-6P

592×592×558

6

4.6

25@3800 40@5400

35@3800 60@5400

55@2500 85@3600

HBP-20×24×22-5P

490×592×558

5

4.1

25@3200 40@4500

35@3200 60@4500

55@2000 85@3000

HBP-12×24×22-3P

287×592×558

3

2.3

25@1900 40@2700

35@1900 60@2700

55@1250 85@1800

HEFIL makes various other models of HBP filter not listed the above table. Please consult with us if you need.
