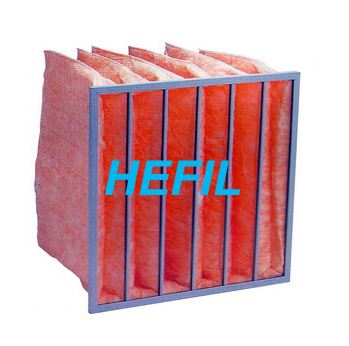

HBG Fiberglass Pocket Filter

===Features===
◆Filtration efficiency rating F5~F8 is available for selection
◆Filter material is made of extremely detailed special glass fiber,
enhanced with non-woven composite. It has a high dust containing capacity
◆Fire-protection Rating: UL-900 Class 2
◆The filter can be with the frame made up of aluminum alloy, galvanized
steel or stainless steel

===Application===
◆Suitable for the electronics, bio-pharmaceutical, machinery,
instrumentation, petrochemical and light industry as general air
purification systems.

===Common specifications===

===Common Specifications===

Model	Dimensions	No. of Pockets	Media Area (m²)	Initial Pressure Drop (Pa) @ Rated Air Flow (m³/h)
Model	W×H×D (mm)	No. of Pockets	Media Area (m²)	F5 (40~45%)	F6 (60~65%)	F7 (80~85%)	F8 (90~95%)
HBG-24×24×36-10P	592×592×915	10	12.0	-	87@5100	110@4250	125@4250
HBG-24×24×30-10P	592×592×762		10.0	-	85@5100	78@3400	105@3400
HBG-24×24×22-10P	592×592×558		7.4	-	80@3400	120@3400	130@3400
HBG-24×24×15-10P	592×592×381		5.2	-	87@2550	115@2550	150@2550
HBG-24×24×36-8P	592×592×915	8	9.8	-	77@4250	88@3400	110@3400
HBG-24×24×30-8P	592×592×762		8.2	-	82@4250	96@3400	125@3400
HBG-24×24×22-8P	592×592×558		6.1	-	110@3400	105@2550	125@2550
HBG-24×24×15-8P	592×592×381		4.2	-	102@2550	95@1700	140@1700
HBG-24×24×36-6P	592×592×915	6	7.6	-	75@3400	110@3400	130@3400
HBG-24×24×30-6P	592×592×762		6.4	44@3400	72@3400	120@3400	115@2550
HBG-24×24×22-6P	592×592×558		4.7	53@3400	87@2550	130@2550	120@1700
HBG-24×24×15-6P	592×592×381		3.3	65@3400	82@1700	125@1700	140@1250
HBG-20×24×36-5P	492×592×915	5	6.3	-	-	-	130@3000
HBG-20×24×30-5P	492×592×762		5.3	44@2800	70@3000	115@3000	125@2550
HBG-20×24×22-5P	492×592×558		3.9	53@2800	107@3000	140@2550	115@1500
HBG-20×24×15-5P	492×592×381		2.7	65@2800	102@2100	130@1500	110@1000
HBG-20×20×36-5P	492×492×915	5	5.4	-	-	-	130@2550
HBG-20×20×30-5P	492×492×762		4.5	44@2300	70@2550	115@2550	125@2100
HBG-20×20×22-5P	492×492×558		3.3	53@2300	107@2550	140@2100	115@1250
HBG-20×20×15-5P	492×492×381		2.3	65@2300	102@1700	130@1250	110@850
HBG-12×24×36-3P	287×592×915	3	3.7	-	-	-	145@1700
HBG-12×24×30-3P	287×592×762		3.1	44@1700	77@1700	125@1700	125@1250
HBG-12×24×22-3P	287×592×558		2.3	53@1700	87@1250	135@1250	105@850
HBG-12×24×15-3P	287×592×381		1.6	65@1700	82@850	125@850	-

HEFIL makes various other models of HBG filter not listed the above table. Please consult with us if you need.
